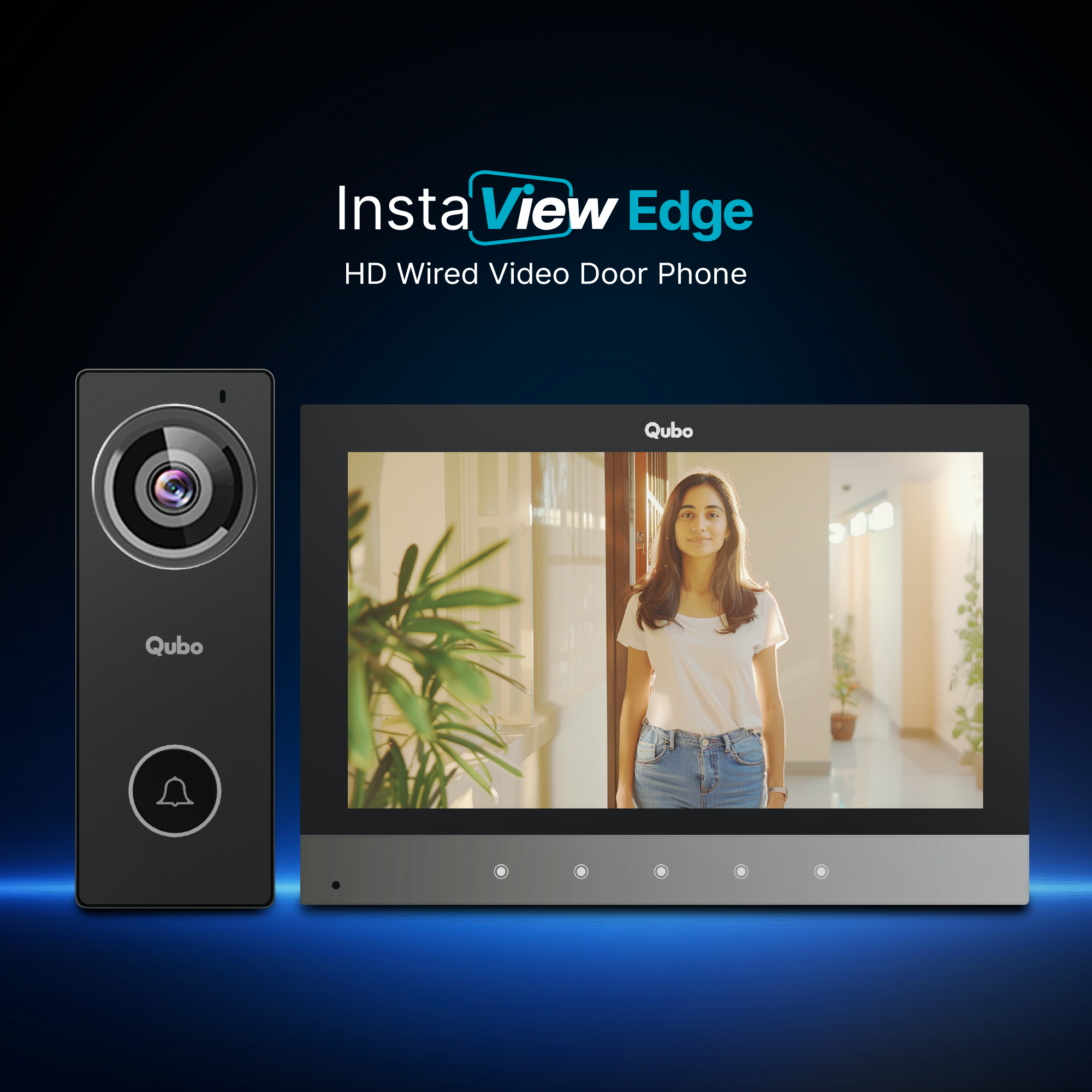

InstaView Edge

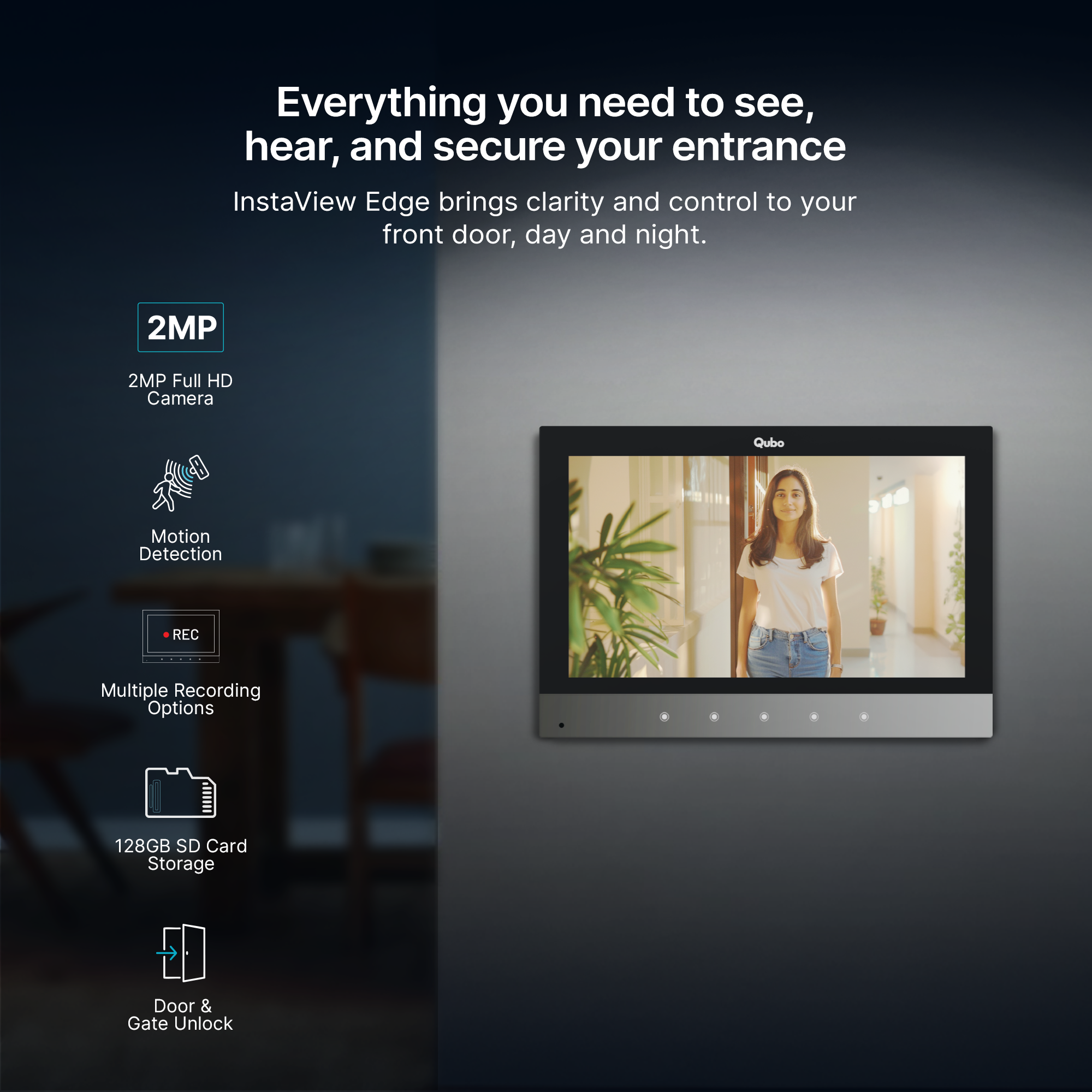

See who’s at your door clearly with a wide view and get alerted the moment there’s movement, even before the bell rings. Designed to look premium and work effortlessly, day or night. A simple, smarter way to keep an eye on your entrance.
MRP ₹ 15,990.00 (Inclusive of all taxes)
₹ 8,990.00 (44% Off)
Check delivery timeline
At Qubo, trust is guaranteed at every step.
warranty
1 Year
Warranty
free-delivery
Free
Delivery
cod
COD
Available

What’s in the box?

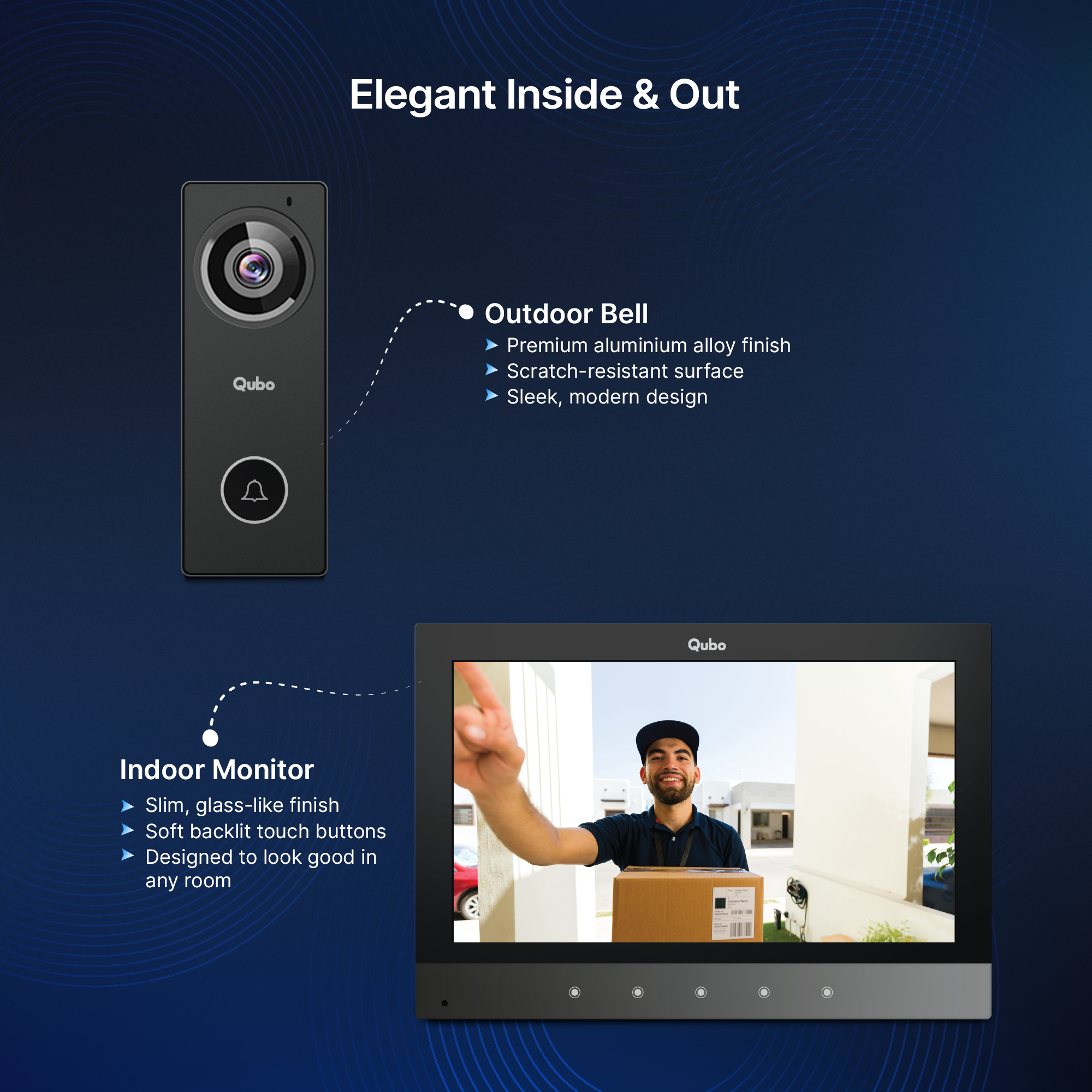

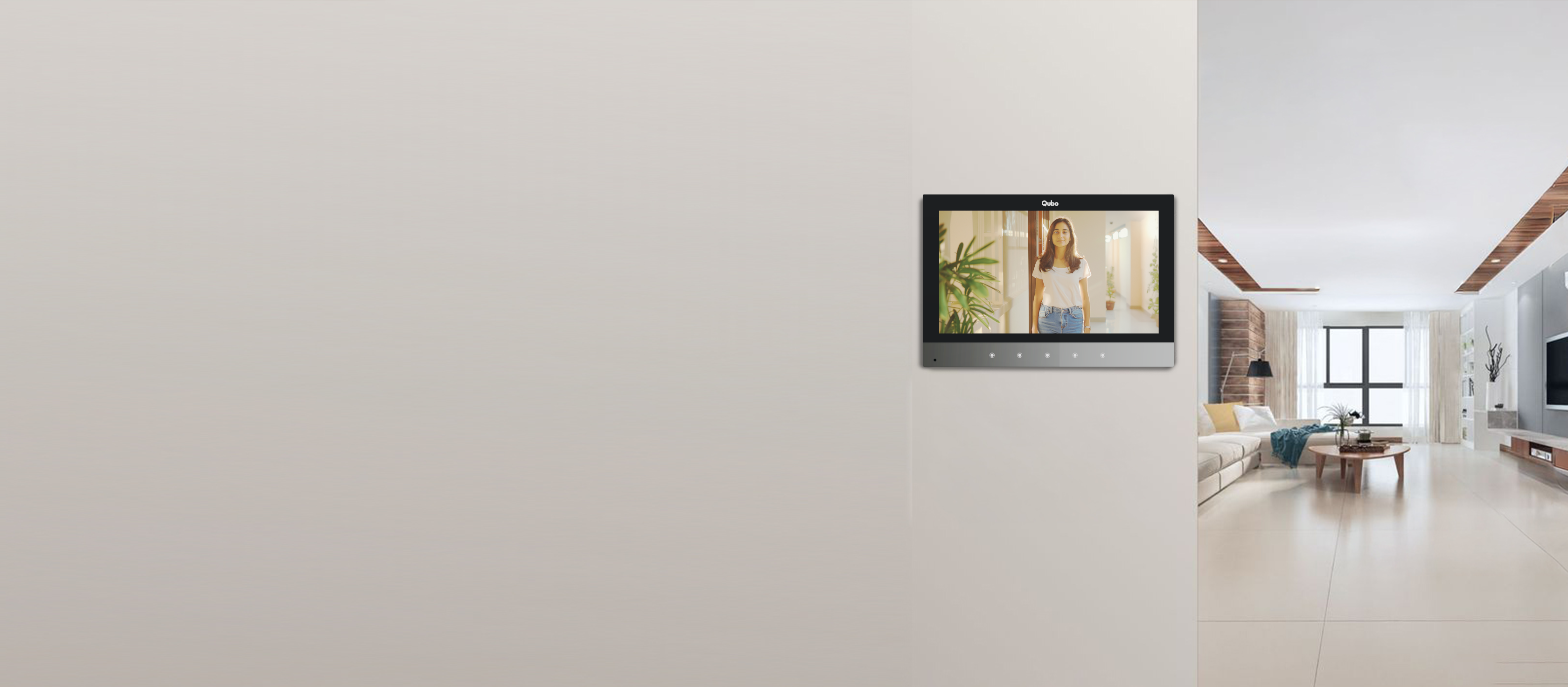

  • Indoor monitor unit × 1

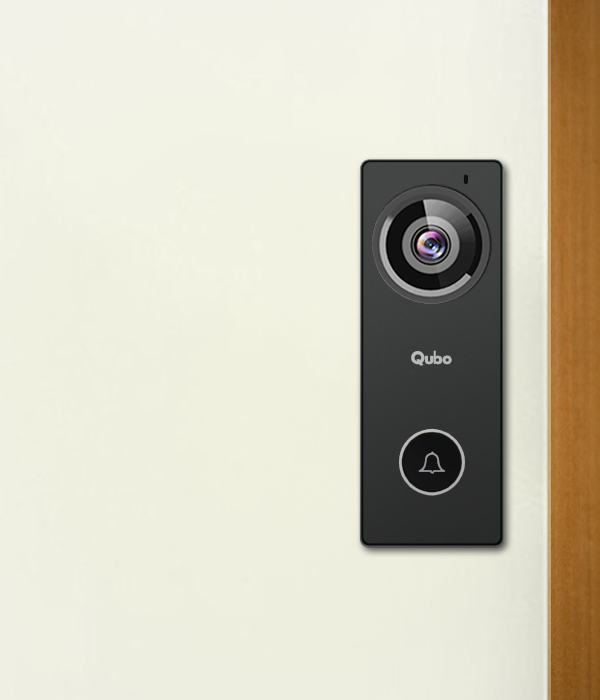

  • Outdoor doorbell unit × 1
Mounting accessories
  • Wall bracket × 1
  • Angular bracket × 1
  • Indoor unit bracket × 1
Power & connectivity
  • Power adapter with wire (DC 14.5V, 1A – BIS certified) × 1
  • 4-pin cables × 3
Installation hardware
  • Screws (assorted sizes) × 8
  • Silicone caps × 4
  • Allen key × 1

Technical Specifications

Feature/Component ​InstaView Edge ​
Doorbell​
Built​
Premium Aluminium Alloy Finish​
Camera Sensor​​
1/3’, 2MP
Sensor Resolution​
1920 x 1080 P (Full HD)​
FoV​
150 degree (industry leading)​
IP Rating​
IP65​
AI enabled Motion Detection​
Yes​
Installation Option​
Straight + Angular​
Night Vision​​
IR LED
Customization​
MIC and Speaker Volume​
Tab​​
Built​
Acrylic Front (High Transparency, Impact Resistance, Scratch Resistant)​
System​
Linux, OSD Menu​
Tab Resolution​
1024x600P​
Stored Video Resolution​
640x360P ​
Navigation​
5 Backlit Touch Button​
TV Output support​
Yes​
Screensaver & Customization​
Yes (Either Video Doorbell 1 or Video Doorbell 2 or Camera 1 or Camera 2 or Time & Calendar)
Ringtones​
6 inbuilt (option to customize for different times) + add up to 20 .MP3 files via SD card (individual file size should be 15MB max)​
Bell Press Image Recording​
Yes (set either image or video)​
Bell Press Video Duration​
Up to 60 seconds
Motion Detection Video Duration
60 seconds
Loop Recording​
Yes (set timing for 10s, 30s, 60s)​
Inbuilt Memory​
Yes, 7MB (upto 50 Images)​
Expandable Memory​
Yes, upto 128 GB ​Class 10 or higher Micro Sd Card
Additional Monitor​
Yes ​
Intercom​
Yes, upto 3 (Point to Point)​
Additional Video Doorbell​
Yes, max 2 can be connected
External Sensor​
Yes, 2 NC type sensors (connected to cameras)​
External Camera​
Yes, 2 ​
External Locks​
Yes, Main Gate (NO,NC, COM) and Door ( Electromagnetic & Rim lock)​ Media View​

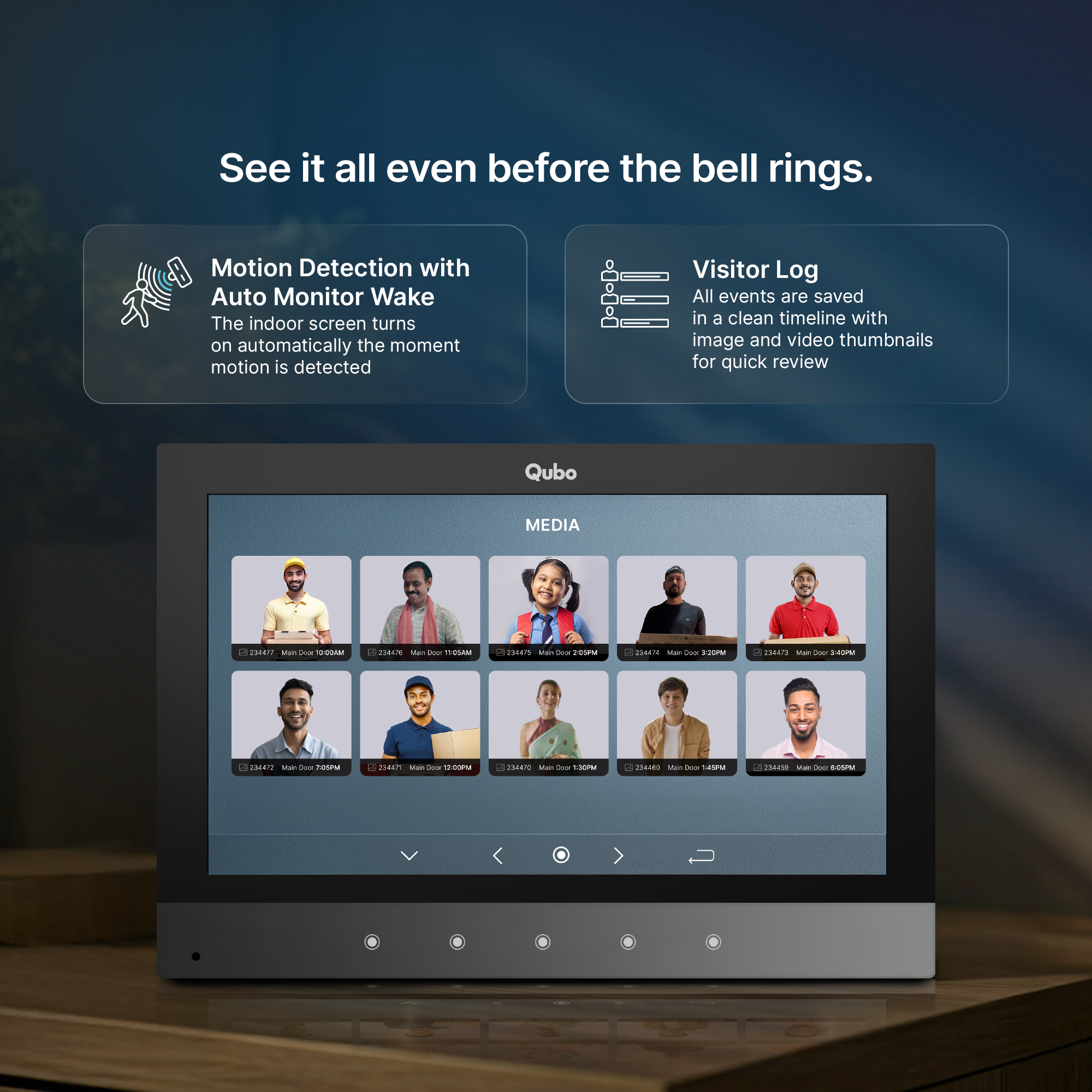

Media View​ ​
Images and Videos with Thumbnails

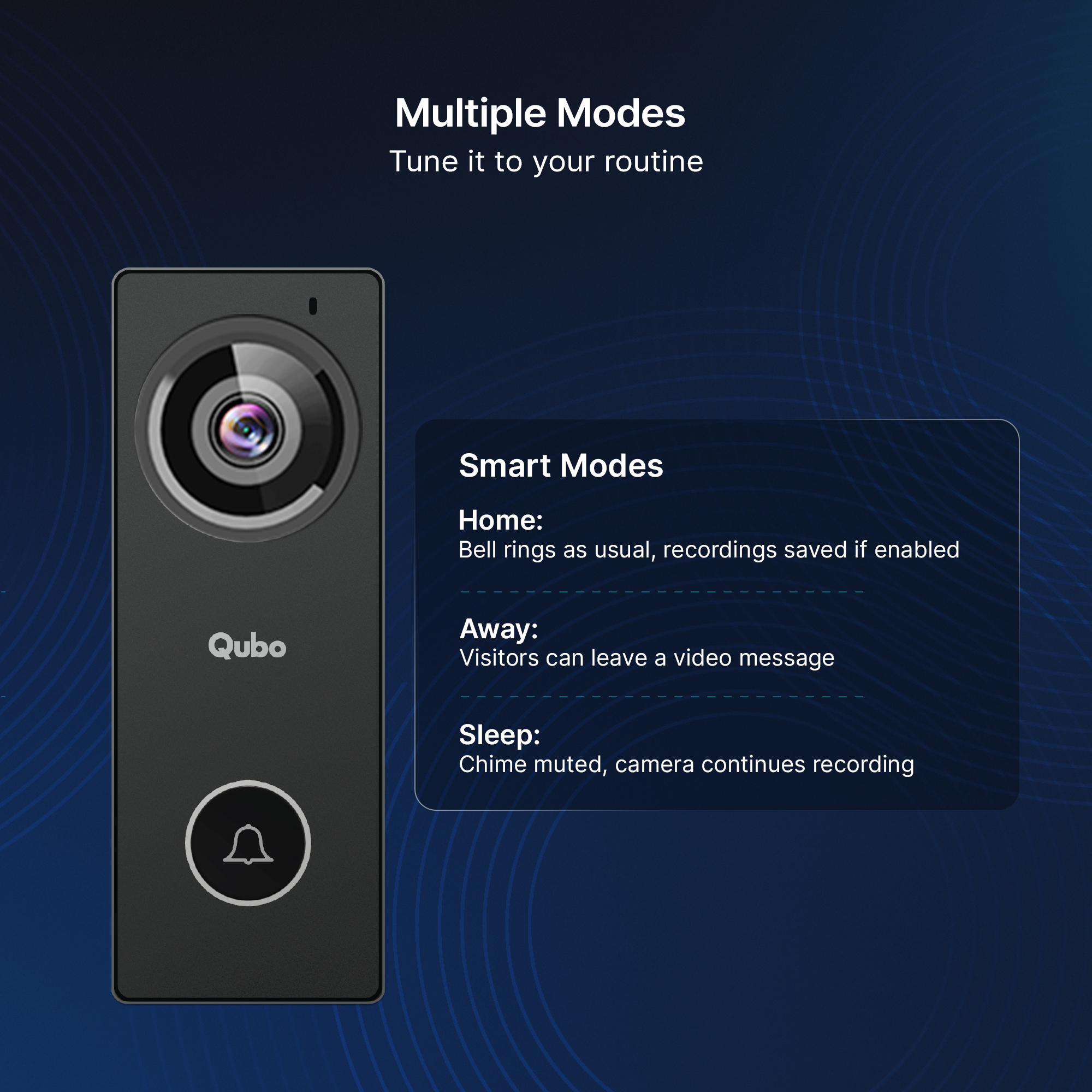

Modes​​
Home / Leave Home / Sleep​​
Display Adjustment ​
Brightness + Contrast + Color ​
Power Adapter
14.5V,1A​
Working Consumption​
Standby < 3W, Working < 10W​
Temperature​ ​
​-10 degree to 50 degree
Humidity​
< 80%​
Quantity
1N
Net Content
Qubo Video Dool Bell (HCD06) 1N, Qubo Indoor Unit (HDT02) 1N, Indoor Mounting Bracker 1N, Porwer Adaptor 1N, Outdoor Mounting Bracket 1 N, Screw Kit 1N, 3 Pin Cable 1N, 4 Pin Cable 3N, Allen Key 1 N
Imported and Marketed by
Hero Electronix Private Limited
Plot No 4, Khasra No. 382, Village Sultanpur, MG Road, New Delhi-110030

For Consumer Complaints
Please contact Customer Support Manager,
Hero Electronix Private Limited
Plot No 4, Khasra No. 382, Village Sultanpur, MG Road, New Delhi-110030
www.quboworld.com/support | Whatsapp +91 8766205724
Country of Origin
China

Frequently Asked Questions

Which Micro SD card will it support?
It supports up to 128GB Class 10 Micro SD cards. It is recommended to format the SD card through system settings before use.
How many images can the built-in memory store?
Up to 50 snapshots.
How do I connect doorbells, analog CCTV cameras, locks, and sensors?

Refer to User Manual pages 9 and 10 for connection steps.

The monitor supports

  1. Max 2 Doorbells
  2. 2 analog CCTV cameras
  3. 2 NC-type sensors
  4. 2 locks
How long can I monitor or talk?
Monitoring: 30 seconds, Call: 30 seconds, Talk: 60 seconds.
Can visitors leave a message?
Yes, in “Leave Home” mode.
What is Sleep Mode?
The monitor stays muted, but images or videos are silently stored if Auto Record is enabled.
