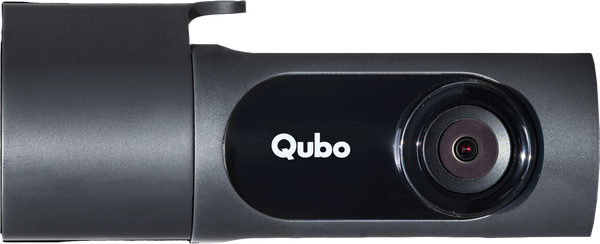

Smart Dashcam Pro X
Dashboard Explainer
Device Related
Dashcam is a video camera which is mounted on the Dashboard or Windscreen of a vehicle and used to continuously record the view of the road, traffic etc through the windscreen.
Dashcam is useful as it provides video evidence in the below mentioned scenarios:
- Car Accidents
- Insurance Claims
- Incorrect Challans
- Journey Vlogging
- Connect the Dashcam with the Power Adaptor and insert the adaptor into car charger socket. Please insert SD Card in the SD Card slot for proper installation of the Device.
- Turn on the Car Ignition and check if the Dashcam gets a Red LED Indication. Device then announces that “Qubo Dashcam is ready for Setup. Please follow the instructions from the Qubo App”. Download the App and follow further steps from the App.
- Clean the Windshield area where the Dashcam is to be installed.
- Remove the Protective Film from the Double Sided Adhesive and attach it on the windshield such that the view of the Driver is not blocked and proper view of the Front in correct orientation is present.
- Remove and then re-attach the USB Cable with the Dashcam and with the help of Installation Tool/Pry tool you can tuck In the Cable properly by lifting the Windshield/ molding. Re-Connect it with the Power Adaptor and insert the adaptor into car charger socket.
When you launch the App, you will have to first install the Dashcam. Please follow the On-Screen instructions. The Dashcam creates a Wi-Fi hotspot which then automatically connects with the App. If it is not getting connected, please enter the default password 12345678 from your Wi-Fi settings to connect.
The Dashcam needs a Micro SD Card to record videos. It automatically records continuously and the same can be accessed with the Timeline Scrubber. Additionally, it also generates certain events based on activity, accessible under the Events Log (Events Tab). Trip-based recordings can be accessed from the Trips tab. You can download all the recordings, but each clip will be 1 minute long.
Yes. The Dashcam records continuously if a Micro SD Card is inserted. Recordings and events can be accessed in the App.
No. The dashcam needs Internet only in the below scenarios:
- During the Installation process (to link your account with the Dashcam on our Cloud).
- If you change settings and want it to sync with other devices.
- If you want to remove the Device from your account.
To remove the Device from the Car, you have two options:
- Strongly pull the Device from the Adhesive on the Windscreen. The device will be removed but the Adhesive will still be present on the Windscreen.
- To remove the Adhesive too, strongly pull the Adhesive from one end and keep pulling till it is removed.
Though it is not mandatory, we recommend you to install the dashcam in the car. The dashcam needs a power source to function; if you can provide that away from the car, then it's fine—but it should be more than 12 V.
The Dashcam supports Mini USB Cable.
Mini USB Cable comes with six-months warranty.
Please check if the Dashcam is powered on. In some cases it takes a bit more time than usual. If it still doesn’t connect, please reboot the Device and try again.
Dashcam comes with a one-year warranty.
-5 degree to 65 degrees Celsius.
No.
You can use the Pry tool to tuck in the cable. Ensure the Cables are routed behind heading of the vehicle, then behind the weather seal of the door, then route car power cable from inside the Glove Box. This way your complete wiring will be concealed.
Wireless Apple CarPlay/Android Auto also connects to your phone through a Wi-Fi hotspot. Please disconnect them temporarily while connecting your phone to dashcam to set up or view/download videos from the dashcam. Note: Your dashcam records when the car’s ignition is on even if your phone is not connected to the dashcam.
Generally, in case of Android, the phone automatically switches to Mobile Data if the Wi-Fi is not having any internet or it will prompt you to switch. In older phones you might face this issue. In that case, disconnect your Wi-Fi so that the Mobile Data starts working. Your dashcam records when the car’s ignition is on even if your phone is not connected to the dashcam.
The Dashcam remains active for 1 minute post the Car Ignition is Off. If you want to record while the Car is Off (in Parking), you will need to separately buy a Hardwiring Kit.
No. The App displays all the events and recordings when you are connected with the Dashcam through the Wi-Fi Hotspot. Once the Hotspot connection is lost, you can only check Downloaded Clips.
No. You can only access the downloaded videos. To access real-time videos, you will need to be connected to the Dashcam with the Wi-Fi hotspot created by the Dashcam.
No. You need your phone to be connected to the Wi-Fi Hotspot created by the Dashcam to check the Feed and recordings even if you use the same credentials.
App Related
Yes. The App is named Qubo Pro and it is available on both Play Store and App Store. You can also download the App using the below QR Code-
No. You can use the existing account with the Qubo Pro App which you use for Qubo.
Please create a new account using Sign Up and enter the required details to create an account.
Yes, during installation from App. The App asks you to name your device and change its password. Once done it doesn’t allow you to change it again.
Once you open the App, go to the Device Dashboard and tap on Settings. Under Settings, you will see an option named Device. Under the Device option you can tap on the password to check the same.
Under Settings option present on the Device Dashboard, at the bottom there is an option named “Remove Device”. Your device will then be removed.
Then the Dashcam is no more connected to your account. But to remove it from being visible, go to Settings option on the Device Dashboard and from the bottom tab of “Remove Device” the Dashcam will be removed.
It might be the case if you have not connected your Mobile with the Internet using Mobile Data. The App needs to connect with Cloud to sync the Settings across devices and for that it needs Internet.
No. Mobile Data is not consumed if you download a video. Your phone should have enough storage and that is enough for us to download the video.
The App has multiple functions:
- Live View
- Event based recording
- Trip based recording
- Timelapse etc
Currently it generates 3 types of events:
- Ride Started – When the Ignition is On and Dashcam gets power.
- Ride Stopped – When the Ignition is Off and power supply to Dashcam stops.
- Jolt Detected – Whenever the Dashcam detects a jolt like in case of a Bumper on the road, or someone crashes in your car.
Yes. Under Settings there is an option called “Record Trigger”. Here you can set the sensitivity for the sensor to detect events. If set as ‘high’, it will detect even a slight inconvenience and if set on ‘low’ it will detect major events.
From the moment the car’s ignition is turned on, the Dashcam starts recording and it stops recording when the car is stopped. If you re-start the Car’s Ignition within 5 minutes it will continue to be a part of the same trip. This whole recording is considered as one trip and you can check this under Trips tab.
The Dashcam keeps on recording under the same trip if the Car Ignition was Off for under 5 minutes. If it was Off for more than 5 minutes, then it will start a new trip.
Please download the Video first. Once downloaded, it will appear in Gallery and then if you play the same it gives option to forward/rewind that downloaded video.
The Dashcam allows you to download all the recordings which are done but the clip length will be 1 minute only. So if you have a 5 minutes trip then you will have to download 5 clips.
- If the Device is connected with the App, then under Settings option there is an option “Device Restart” at the bottom. Tap on the same to reboot.
- If Device is not connected with the App, then there is a Reboot Key on the Dashcam. Press it using a pin to reboot.
Under Settings there is an option called “Audio Track Recording”, you can Switch It On or Off as per your convenience.
Under Settings there is an option called “Audio Alerts”, you can Switch It On or Off as per your convenience.
If you lose your phone you can manage your account from any other compatible mobile device. You can also easily move your account from one phone to another and also remove your Dashcam from the app if you think your phone may be compromised.
You can view past recordings by using a calendar provided on screen, then select the date for the recordings you are looking for.
Once you select the event, click on Download arrow Icon to download. For deletion, just click on Delete Icon.
By sharing login credentials of Qubo Pro app.
Yes, as simultaneous logins have the same rights.
Time lapse video summarizes the whole day of recording in a single video. Below the Player there is an icon for Timelapse. When you tap on it, it asks you to select a particular date and then if there is enough recording on that date then a Timelapse video will be generated.
Storage Related
Yes. The dashcam stores all the recording in the SD Card only. You can only view Live feed without the SD Card but then no event will get generated. We recommend you to use a SD Card for better experience.
